Install bearing bracket

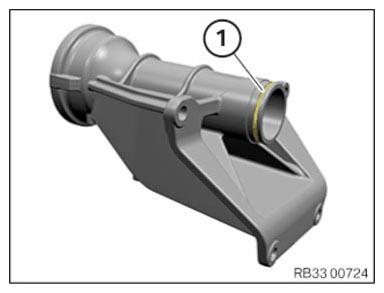

- Check the O-ring (1) and replace if necessary.
- Coat the O-ring (1) with front axle transmission oil.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Position the bearing bracket (2) at the engine oil pan.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Bearing bracket to engine oil pan. |
| M8 |
Tightening torque |
19 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
