Fastening the charge air crossing

Charge air crossing

Courtesy of BMW OF NORTH AMERICA, INC.

• Ensure that guide sleeves (1) are present and have been installed correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Ensure that guide sleeves (1) are present and have been installed correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

  The connectors (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the charge air crossing (1) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the clamp (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check seal (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

• Remove damaged seal.
• Clean the gasket groove (1) with a dry cloth.

  The gasket groove (1) must be clean.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket.

  Parts:  Gasket

• Install the seal dry without lubricant or mounting agent.
  NOTE: TECHNICAL INFORMATION
  Incorrect assembly is possible. Ensure correct installation position.
• Thread in seal and install.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Make sure that the seal is installed correctly in the gasket groove (1).
• Make sure that the sealing lip (2) is directed to the inside as shown.

• Lock clamp (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the charge air crossing (2) to the charge air duct (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check seal (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

• Remove damaged seal.
• Clean the gasket groove (1) with a dry cloth.

  The gasket groove (1) must be clean.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket.

  Parts:  Gasket

• Install the seal dry without lubricant or mounting agent.
  NOTE: TECHNICAL INFORMATION
  Incorrect assembly is possible. Ensure correct installation position.
• Thread in seal and install.
• Make sure that the seal is installed correctly in the gasket groove (1).
• Make sure that the sealing lip (2) is directed to the inside as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

• Lock clamp (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the charge air duct for cylinders 4-6 (2).
• Ensure that clamps (1) engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check seal (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

• Remove damaged seal.
• Clean the gasket groove (1) with a dry cloth.

  The gasket groove (1) must be clean.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket.

  Parts:  Gasket

• Install the seal dry without lubricant or mounting agent.
  NOTE: TECHNICAL INFORMATION
  Incorrect assembly is possible. Ensure correct installation position.
• Thread in seal and install.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Make sure that the seal is installed correctly in the gasket groove (1).
• Make sure that the sealing lip (2) is directed to the inside as shown.

• Lock clamp (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the charge air duct for 1-3 cylinders (2).
• Ensure that clamps (1) engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the charge air crossing (2) and position it.
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Charge air duct on spacers
  M6x25 screw	Tightening torque	10 Nm

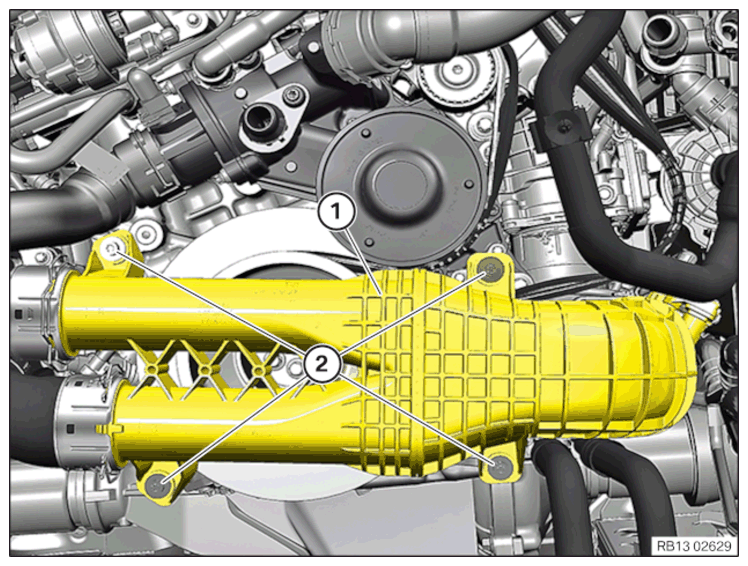

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1).

Charge air duct on spacers
M6x25 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
