Replacing the intake plenum

Removing the throttle body

Loosen screws (1) .
Remove the connecting branch (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) .
Remove the throttle valve (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

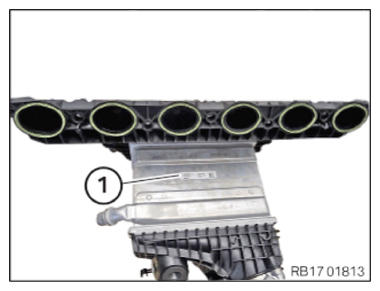

Replace charge air cooler (1) .
Parts: Charge air cooler

Courtesy of BMW OF NORTH AMERICA, INC.

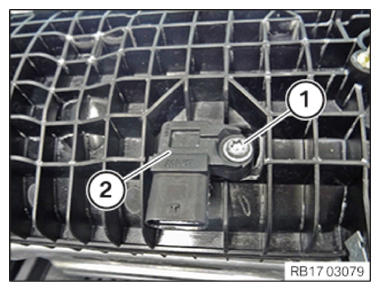

Loosen screw (1) .
Remove boost pressure sensor (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

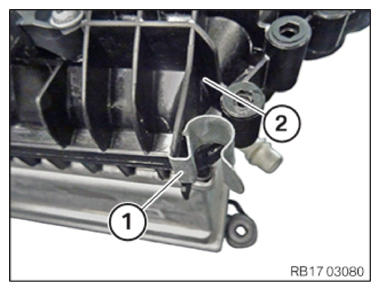

Release the holder (1) from the charge air cooler (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

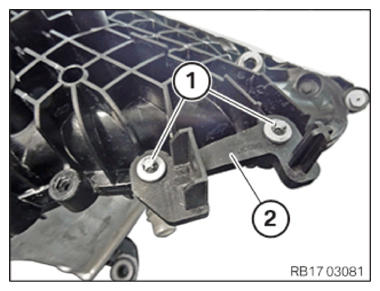

Loosen screws (1) .
Remove the holder (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Replace charge air cooler (1) .
Parts: Charge air cooler

Courtesy of BMW OF NORTH AMERICA, INC.
Install holder (2) .

Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Holder to charge air cooler
Self-tapping screw M6	Tightening torque	5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Attach the holder (1) to the charge air cooler (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Install the boost pressure sensor (2).

Tighten down screw (1) .

TIGHTENING TORQUES SPECIFICATION

Boost pressure sensor to intake plenum
TS6X20	Tightening torque	5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the intake plenum.
Parts: Intake plenum

Installing the throttle body
Replace sealing ring (1) .
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.
Position throttle body (2) .

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Throttle body to charge air cooler
Hexagon screw M6	Tightening torque	9 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing ring (1) .
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.
Position the connecting neck (2) .
Replace screws (1) .
Parts: Screws

Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Connecting bracket on throttle valve
Oval-head screw M6 Replace screws.	Joining torque	4 Nm
Oval-head screw M6 Replace screws.	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
