Removing left and right rear reflectors

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

• Protect working area.
• Handle tools and components carefully.

NOTE: Description is for left component only. Procedure on the right side is identical.

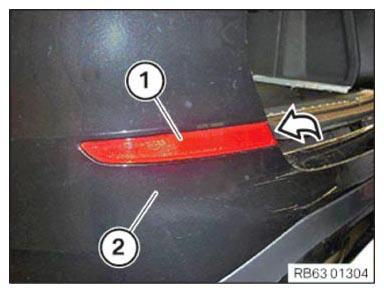

• Unclip the rear reflector (1) with special tool 0 496 571 (00 9 327)  from the bumper cover (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
