Removing both C-pillar trim panels
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
Description is for left component only. Procedure on the right side is identical.

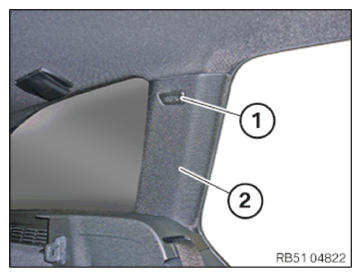

- Lever out the cover panel (1) from the C-pillar trim panel (2) with a suitable tool.
- Release screw below it.
- Feed the C-pillar trim panel (2) out and upwards from the luggage compartment capping.
