Remove the locking clip from the rear seat backrest

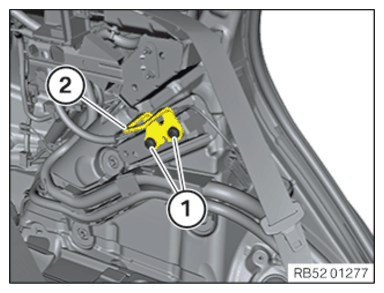

Loosen the screws (1) and remove the locking clip (2).

G15018450

Courtesy of BMW OF NORTH AMERICA, INC.
