Remove both lower d-pillar trim panels
NOTE:
Description is for left component only. Procedure on the right side is identical.

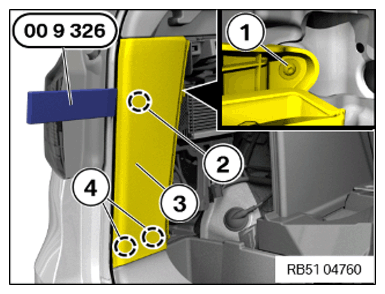

- Loosen screw (1).
- Fit the special tool 0 496 570 (00 9 326) between the trunk lid seal and the bottom D-pillar trim panel (3) as shown.
- Unclip the clip (2) from the lower D-pillar trim panel (3).
- Feed out and remove the lower D-pillar trim panel (3) from the detents (4) in an upward direction.
