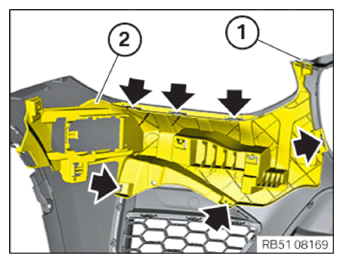

Installing the insert on the front bumper cover at side

Attach insert (2) and engage into detent (arrow).
Install the expanding rivet (1).

G14930265

Courtesy of BMW OF NORTH AMERICA, INC.
