Installing both flaps in the luggage compartment trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

Check

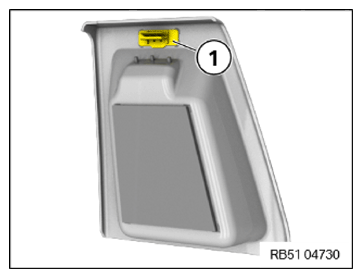

Check the detent (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detent (1) is damaged.

Measure
- Replace flap.

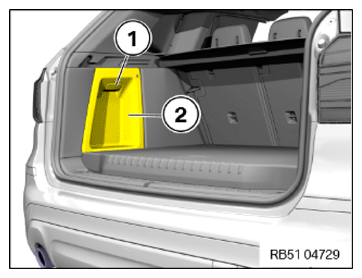

Position the flap (2) in the luggage compartment trim panel and lock in place using the handle (1).

Courtesy of BMW OF NORTH AMERICA, INC.
