Installing the rear wheel arch trim

NOTE: Description is for left component only. Procedure on the right side is identical.

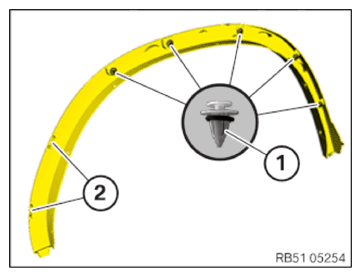

Check the clips (1) for damage and replace where required.
The clips (1) must not be damaged or missing.
Make sure that the clips (1) are always installed with the sealing ring.
Check detents (2) for damage.
The detents (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

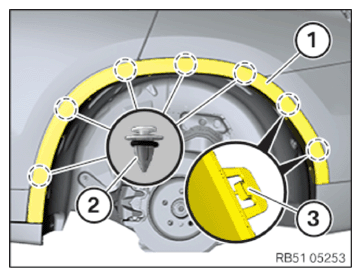

Install wheel arch trim (1) and clip in with the clips (2).
Engage wheel arch trim (1) on the detents (3).

Courtesy of BMW OF NORTH AMERICA, INC.

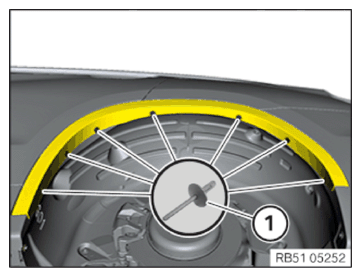

Mount blind rivet (1) using the special tool 0 496 521 (00 2 230) .

Courtesy of BMW OF NORTH AMERICA, INC.
