Install the front top cross connection

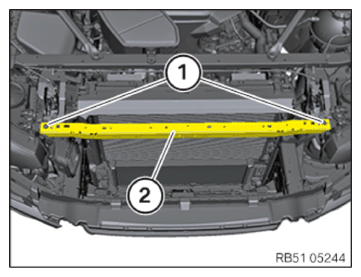

- Attach the front top cross connection (2) .
- Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Top front cross connection to hood lock support screw Tightening torque 11.8 Nm
Follow-up work
- Refer to INSTALLING AIR DUCT .
- Refer to INSTALLING REINFORCEMENT STRUT .
- Refer to INSTALLING THE TOP AIR FLAP CONTROL/AIR DUCT .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING BUMPER COVER, FRONT .
- Refer to PARTIALLY INSTALLING THE FRONT SECTIONS OF BOTH WHEEL ARCH COVERS AT THE FRONT .
- Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH TRIMS .
- Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
