Install the trim panel of the luggage compartment in front

NOTE: Description is for left component only. Procedure on the right side is identical.

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Luggage compartment trim panel to body
Thermoplastic oval-head screw	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

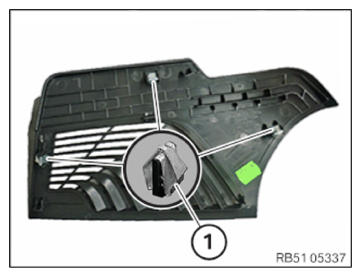

Check clamps (1) for damage; replace if necessary.
Clamps (1) must not be missing or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the cover (1) of the trim panel of the luggage compartment correctly and press it into the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
