Remove the rear side window
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" (X3 M)
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" (X3 M)
NOTE:
TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS (X3 M) .
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS (X3 M) .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE TRIM STRIP AT THE REAR WINDOW .
- Refer to REMOVING C-PILLAR TRIM PANEL .
- Refer to REMOVING THE D-PILLAR TRIM PANEL .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

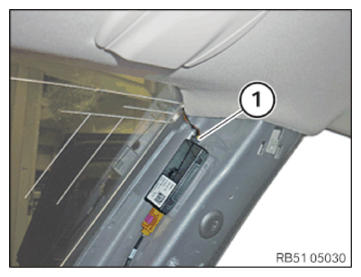

- Disconnect plug connection (1).NOTE: When removing the side window, make sure that the cable is not damaged.

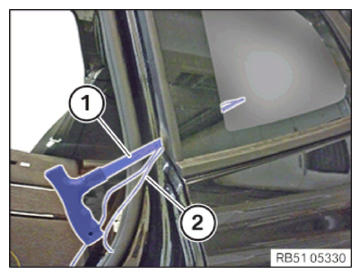

- Use the cord feeder tool (1) to punch the separating cord (2) as shown through the adhesive bead and insert.
- Guide in separating cord (1) on the separating tool and roll up.
- Secure the separating tool (1) as shown.

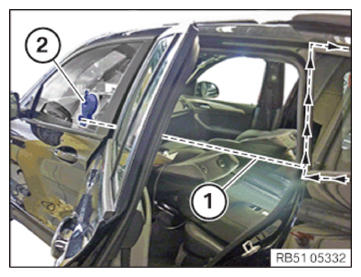

- Install separating cord (1) circumferentially clockwise on the adhesive area of the side window glass behind the seals.

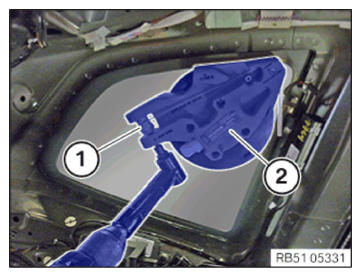

- Secure anchor suction cup (2) on the front side window glass as shown.
- Secure separating cord (1) with the knurled screw of the anchor suction cup (2).
- Separate the side window glass with the Spider.NOTE: The separating tool must be repositioned repeatedly to prevent damage on the vehicle and the tool!
