Remove the rear side window
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" (X3 M)
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" (X3 M)
NOTE:
TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS (X3 M)
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS (X3 M)
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE TRIM STRIP AT THE REAR WINDOW .
- Refer to REMOVING C-PILLAR TRIM PANEL .
- Refer to REMOVING THE D-PILLAR TRIM PANEL .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.
- Disconnect plug connection (1).NOTE: When removing the side window, make sure that the cable is not damaged.
- Use the cord feeder tool (1) to punch the separating cord (2) as shown through the adhesive bead and insert.
- Guide in separating cord (1) on the separating tool and roll up.
- Secure the separating tool (1) as shown.
- Install separating cord (1) circumferentially clockwise on the adhesive area of the side window glass behind the seals.

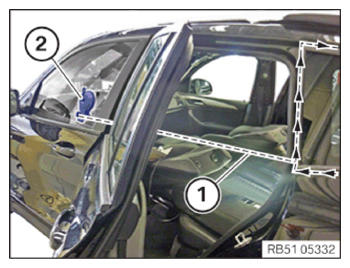

- Secure anchor suction cup (2) on the front side window glass as shown.
- Secure separating cord (1) with the knurled screw of the anchor suction cup (2).
- Separate the side window glass with the Spider.NOTE: The separating tool must be repositioned repeatedly to prevent damage on the vehicle and the tool!
