Remove rear window
NOTE:
TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: 51 31... GENERAL PROCEDURE FOR DISASSEMBLY/INSTALLATION OF BONDED WINDOW GLASS .
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: 51 31... GENERAL PROCEDURE FOR DISASSEMBLY/INSTALLATION OF BONDED WINDOW GLASS .
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: 51 31... WINDOW GLASS REMOVAL USING "SPIDER" .
Perform window removal using the "spider".
For additional information see: 51 31... WINDOW GLASS REMOVAL USING "SPIDER" .
Preliminary work
- Refer to REMOVING THE TRIM FOR THE TOP REAR WINDOW FRAME .
- Refer to REMOVING BOTH TRIM PIECES FOR THE SIDE REAR WINDOW FRAME .
- Refer to REMOVING REAR SPOILER .
- Refer to REMOVING THE LOWER PART OF THE REAR SPOILER .
- Refer to REMOVING THE POWER TAILGATE SWITCH .
- Refer to REMOVING THE TRUNK LID LIGHT .
- Refer to REMOVING BOTH TRUNK LID COVERS .
- Refer to REMOVING TAILGATE TRIM PANEL .
- Refer to REMOVING THE WIPER ARM OF THE REAR WIPER .
- Refer to REMOVING REAR WINDOW WIPER MOTOR .

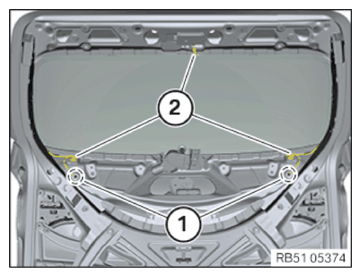

- Loosen screws (1).
- Disconnect the plug connections (2) and unclip from the cable clips.

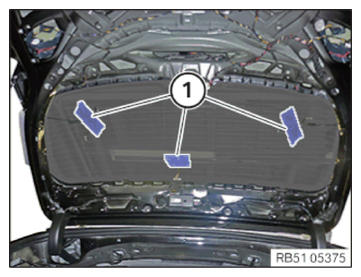

- Secure cable (1) to rear window with adhesive tape.
- Tape off body in area of piercing point with fabric adhesive tape.
- Push the thread (1) through the adhesive bead (2) along the line from the inside.
- Cut out the rear window with spider.
