Remount the rain-light-solar-condensation sensor

• Carefully clean new windshield in the contact area (1) of the rain-light-solar-condensation sensor.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Damage to silicone surface  .
  A damaged silicone surface can lead to malfunctioning of the rain-light-solar-condensation sensor  .

  • Do not tap or damage the silicone-coated surface on the rain-light-solar-condensation sensor.
  • After loosening lock, wait approx. 30 min. at 20°C for silicone surface to relax.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Disconnect the connector (1).
• Push in retaining spring (3) on both sides and unlock the lock (4) by means of a screwdriver.
• Release the rain-light-solar sensor (2).
• Slowly detach the rain-light-solar-condensation sensor (1) from the holder (2) in the direction of the arrow and simultaneously monitor the release of silicone surface from the outside.

  The silicone surface must evenly loosen from the windshield, if required, detach slower.

  Courtesy of BMW OF NORTH AMERICA, INC.

Checking the gel pad

Check

• Check the silicone-coated surface (1) and the PCB (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The silicone-coated surface (1) is damaged.

Measure

• Replace the gel pad,

Result

» PCB (2) is damaged.

Measure

• Replace rain-light-solar-condensation sensor.

Replacing the gel pad

• Pull off the gel pad (1) manually.

  Do not touch or damage the PCB (2).

• Remove present residual gel using a microfiber cloth.
• Clean the surface of the rain-light-solar-condensation sensor with a microfiber cloth soaked in a solvent cleaner R2.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE SPECIFICATIONS



  Cleaning agent R2

  500 ml 83190417324

• Replace gel pad.

  Parts:  Gel pad

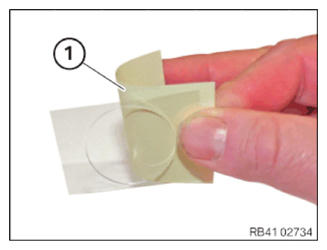

• Pull off the yellow protective film (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the gel pad (1) centrally on the surface of the rain-light-solar-condensation sensor (2).

  Do not squeeze out any air pockets present.

  Air pockets disappear within 30 min after assembly of the sensor on the windshield.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Pull off the protective film (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed the rain-light-solar and condensation sensor (1) into the holder (2) on the new windshield in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Centrally press on the solar rain/driving-light sensor and condensation sensor (2) onto the metal spring (3).

  To lock, consecutively press down both sheet metal tabs (4) on every side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check field of view for air pockets.

  Visible shading (1) and (2) do not represent air pockets, but indicate the optical element of the sensor. This is not a functional limitation.

  Courtesy of BMW OF NORTH AMERICA, INC.
