Remove the outside temperature sensor
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.

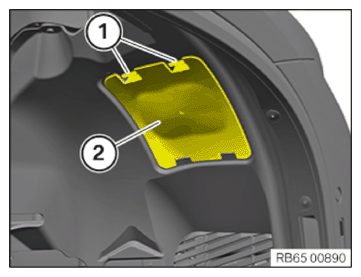

- Disengage the retaining lugs (1).
- Guide out the service flap (2) and remove.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

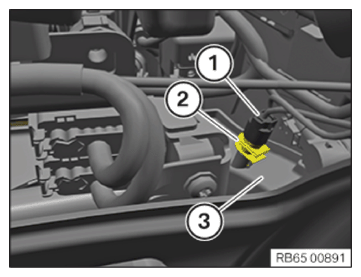

- Unlock plug connection (1) and disconnect.
- Remove the outside temperature sensor (2) upwards out of the air duct (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
