Installing the airbag sensor on the left B-pillar

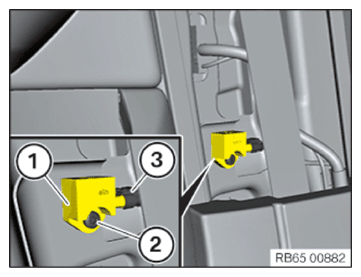

• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Airbag sensor, B-pillar
  M6	Tightening torque	8.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (3) (1) on the airbag sensor on the left B-pillar and lock.

Follow-up work

• Refer to INSTALLING THE LOWER B-PILLAR TRIM PANEL .
• Refer to INSTALLING THE UPPER B-PILLAR TRIM PANEL .
• Refer to INSTALL THE REAR DOOR SILL COVER STRIP .
• Refer to INSTALLING THE FRONT DOOR SILL COVER STRIP .
• Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
