Remove TV module
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES ON ELECTROSTATIC DISCHARGE (ESD) PROTECTION .
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to REMOVING THE ROLLER COVER FOR LUGGAGE COMPARTMENT .
- Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT TRIM PANEL ON THE RIGHT .
- Refer to REMOVING COVER FROM SEAT BELT FINISHER STRIP .
- Refer to REMOVING THE BACKREST SIDE SECTION ON THE REAR SEAT BACKREST .
- Refer to REMOVING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT .

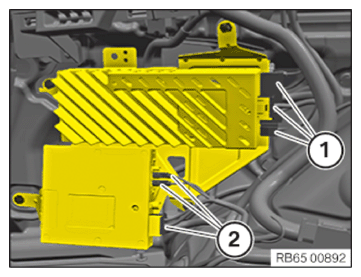

- Unlock and disconnect the plug connections (1) and (2).

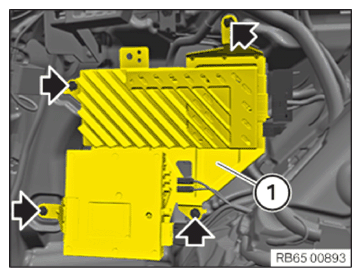

- Release the expanding rivets (arrows).
- Remove the TV module and the bracket (1).
