Remove rear tweeter

Preliminary work

• Refer to REMOVING THE D-PILLAR TRIM PANEL .

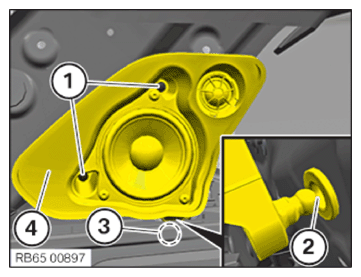

• Loosen screws (1).
• Guide out the guide pin (2) under the shoulder (3).
• Guide out the speaker holder (4) upwards and reverse.

  Courtesy of BMW OF NORTH AMERICA, INC.

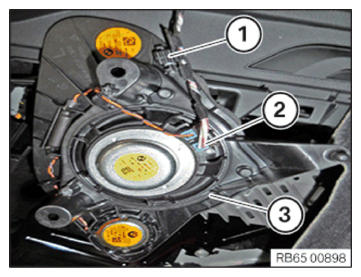

• Disengage detent (1).
• Disconnect the plug connection (2) and remove the speaker holder (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

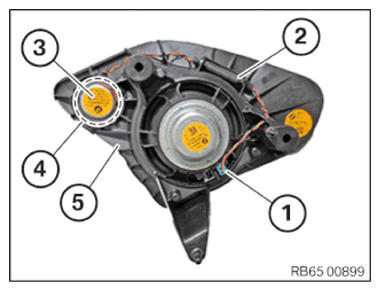

• Disconnect plug connection (1).
• Remove the cables (2) from all holders.
• Disengage detents (4).
• Pull the tweeter (3) out of the support (5).

Courtesy of BMW OF NORTH AMERICA, INC.
