65 13 Loudspeaker And Cover Panel
>>
65 13 188 Removing and installing/replacing mid-range speaker (X3 M)
>>
Remove rear mid-range speaker
Remove rear mid-range speaker
Preliminary work
Refer to
REMOVING THE D-PILLAR TRIM PANEL
.

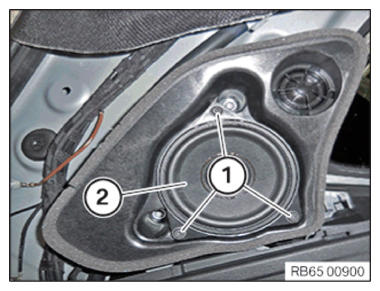

Loosen screws (1).
Pull out the mid-range speaker (2) slightly.
Courtesy of BMW OF NORTH AMERICA, INC.

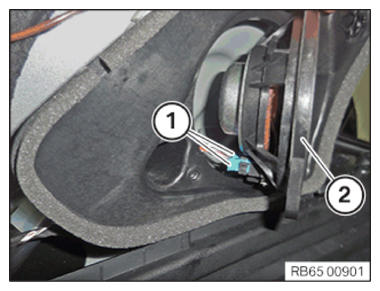

Disconnect the plug connections (1) and remove the mid-range speaker (2).
Courtesy of BMW OF NORTH AMERICA, INC.
