Install the speaker holder on the dashboard

Position the speaker holder (2).
Connect the plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

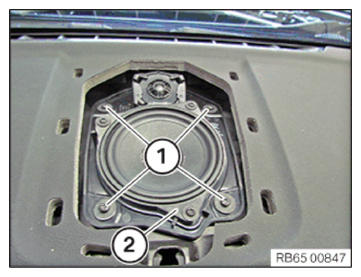

Install the speaker holder (2) with the loudspeakers.
Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Loudspeaker to dashboard
screw	Tightening torque	1.8 Nm

G14301958

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
