Remove central bass

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to REMOVING FRONT SEAT .

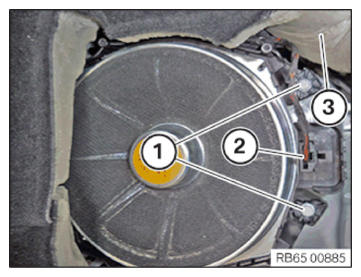

Loosen screws (1).
Remove the cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Fold up the carpet (3) as shown.
Loosen screws (1).
Unlock and disconnect connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

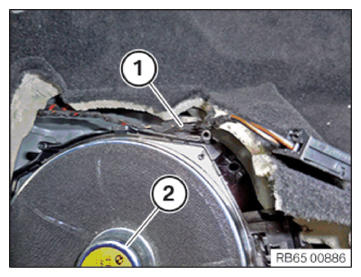

Release cable clip (1).
Remove the center bass (2) upwards.

G14301913

Courtesy of BMW OF NORTH AMERICA, INC.
