Installing the speaker trim on the left and right center bass
NOTE:
Description is for left component only. Procedure on the right side is identical.

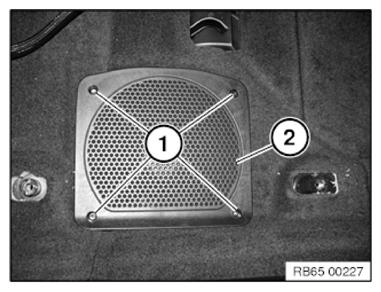

- Position the speaker trim on the central bass (2)
.
- Tighten down screws (1)
.
Tightening torques
| Central bass speaker trim |
| screw |
Tightening torque |
2 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
