Install the left and right front seat
NOTE:
The data status was not available at the time of publication.
NOTE:
Perform the steps on the left and right side.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
- Cover the door sill using protective covers.NOTE: RISK OF DAMAGE
Heavy component .
Heavy components can lead to injury or damage .- Remove and install heavy components with the aid of another person/other persons.
- With the assistance of another, lift the front seat into the vehicle and position.

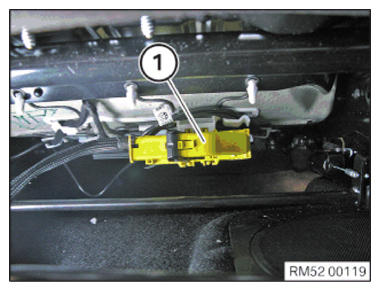

- Place front seat to the rear and connect the connector (1) .
- Move the front seat backward.

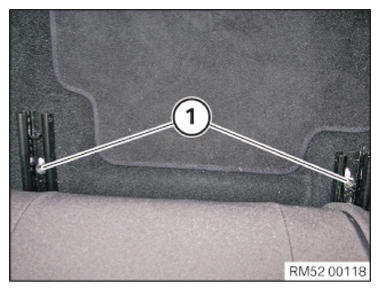

- Replace screws (1)
.
Parts: Screws
- Tighten down screws (1)
.Tightening torques
Seat to body Cheese head screw with collar Replace screw. Tightening torque 42 Nm - Move the front seat forward.

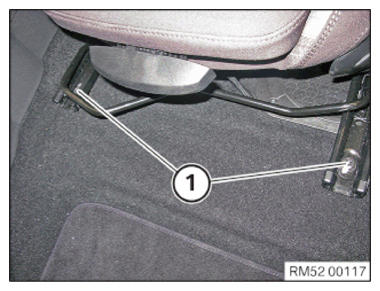

- Replace screws (1)
.
Parts: Screws
- Tighten down screws (1)
.Tightening torques
Seat to body Cheese head screw with collar Replace screw. Tightening torque 42 Nm Disconnect all battery negative leads

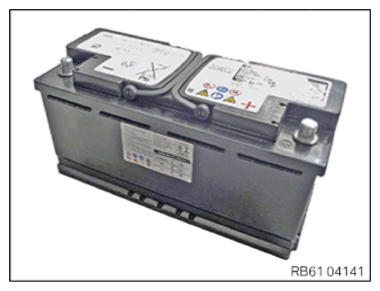

- See DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY
Installing the front strap fitting
NOTE: TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period. - Feed in the strap fitting (2) and click it home.

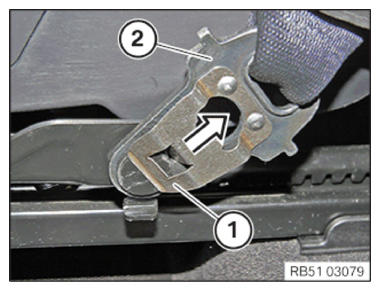

- Pull the seat belt end fitting (2)
in the arrow direction until the lock plate (1)
audibly snaps in.
The strap fitting can be rotated on the bolt if the lock plate is properly engaged.
Check
- Check whether the strap fitting can be rotated on the bolt.
Result
» The strap fitting cannot be rotated.
Measure
- Try engaging the lock plate again.
Mounting the front strap fitting correctly
End lining
NOTE: TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .

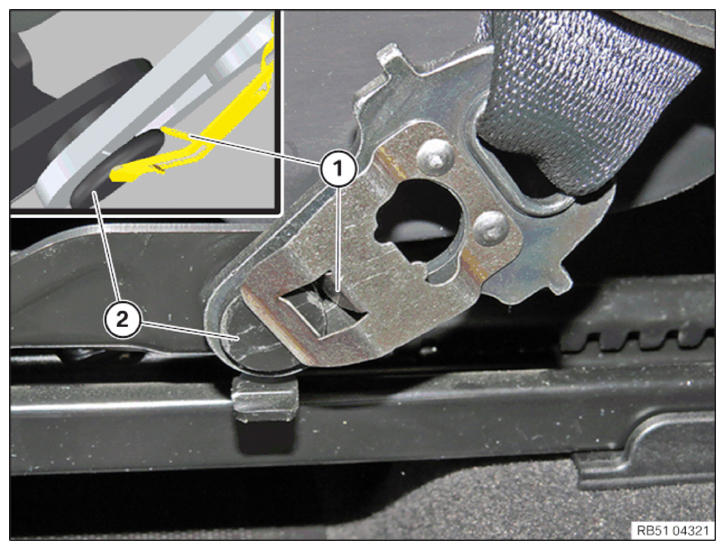

The screw connection must be completed within 10 minutes as hardening begins after this period. - Make sure that the retaining tab (1) snaps in correctly behind the pin (2) .
- Observe the following animation:

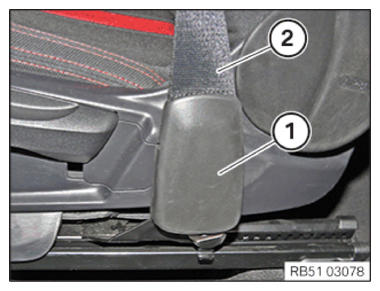

- Slide down the cover (1) of the safety belt (2) .
- Perform the concluding check: Pull the strap fitting forward, up and back.
