Install the left and right B-pillar trim panels at bottom

Installing the lower B-pillar trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

Replace damaged clips (2) .
Parts: Clips

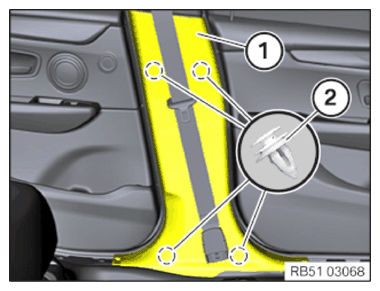

Feed in the B-pillar trim panel (1) at the top and position correctly.
Clip in the B-pillar trim panel (1) at the clips (2) .
Make sure the B-pillar trim panel (1) is correctly positioned on the edge protection.
