Installing clean air pipe

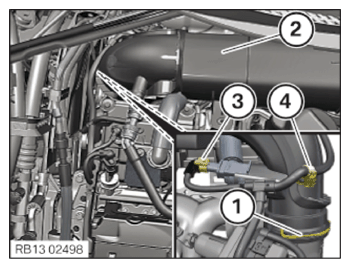

• Feed in and position the clean air pipe (2).
• Secure clamps (4).
• Connect and lock the connector (3).
• Make sure the connector (3) engages audibly.
• Feed in clean air pipe (2) and install.
• Make sure that the clamp (1) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

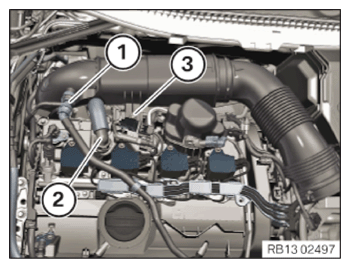

• Tighten down screw (3).

• Connect the engine ventilation lines (1) to the clean air pipe and lock in place.
• Make sure that the engine ventilation lines (1) engage audibly into the clean air pipe.
• Connect the engine ventilation line (2) to the cylinder head cover and lock in place.
• Make sure that the engine ventilation line (2) engages audibly on the cylinder head cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR BULKHEAD .
• Refer to INSTALLING THE UPPER FIREWALL COVER PANEL .
• Refer to INSTALLING FRONT WINDSHIELD PANEL COVER .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to INSTALLING INTAKE SILENCER HOUSING .
• Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
• Refer to FOR REPLACEMENT: RESET ADAPTATION VALUES .
