Installing the tailgate trim panel

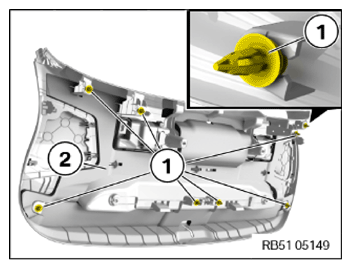

• Check clips (1) on tailgate trim panel (2) for damage, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

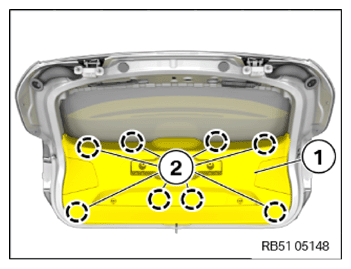

• Clip in the tailgate trim panel (1) with the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

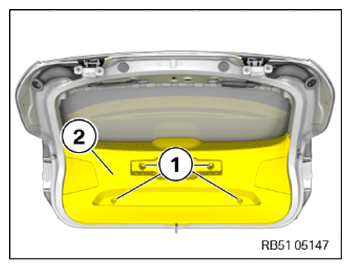

• Tighten the bolts (1) at the tailgate trim panel (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Trunk lid, finisher panel
  screw	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• If necessary, insert and fasten the warning triangle in the tailgate trim panel (2).

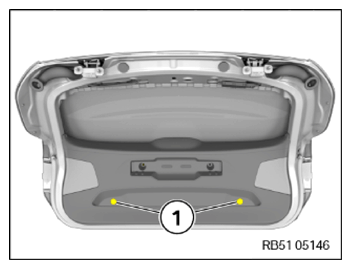

• Insert the covers (1) of the bolting points.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to MOUNTING BOTH TRIM PIECES FOR THE REAR WINDOW FRAME ON THE SIDE .
• Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
