Installing loading edge trim

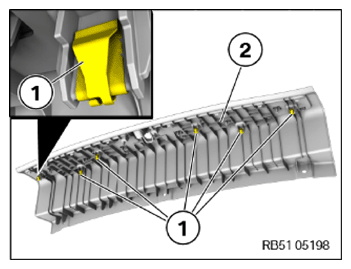

• Check the clamps (1) at the loading edge trim (2) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

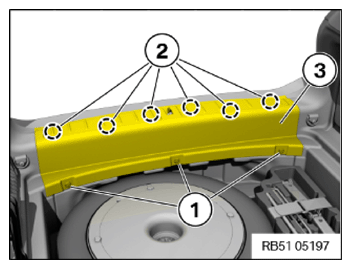

• Insert the loading edge trim (3) in the area of the expanding rivets (1) into the underlying rear luggage compartment trim panel.
• Guide in the loading edge trim (3) under the sealing lip of the seal for the tailgate and clip it in with the clamps (2).
• Secure expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LUGGAGE COMPARTMENT REMOVABLE PANEL .
