Installing the front wheel arch cover
Installing the front wheel arch cover

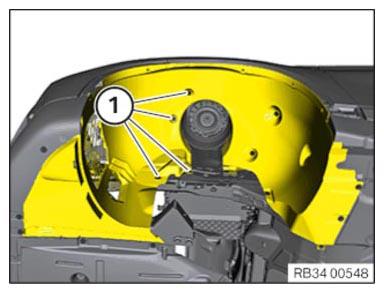

Position wheel arch cover.
Insert screws
(1)
and tighten them.
Courtesy of BMW OF NORTH AMERICA, INC.
Position wheel arch cover.
Insert screws
(1)
and tighten them.
Tightening torques
Wheel arch cover to body
Screw
Tightening torque
2.5 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
