Removing the front right wheel arch cover
Removing the front wheel arch trim
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.
NOTE:
Description is for left component only. Procedure on the right side is identical.

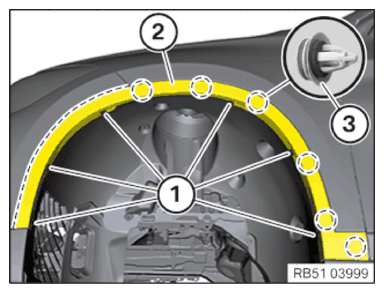

- Remove the blind rivets (1) .
- Loosen the wheel arch trim (2) in the area of the side panel from the clips (3) .
- Loosen the wheel arch trim (2) from the locks on the bumper and remove.
NOTE:
Description is for left component only.
Procedure on the right side is identical.
Procedure on the right side is identical.

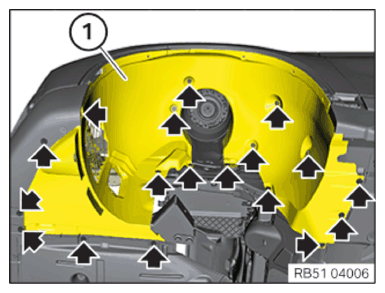

- Unscrew all screws and nuts (arrows).
- Guide the wheel arch cover (1) out.
