Removing the tank ventilation line with the differential pressure sensor
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .

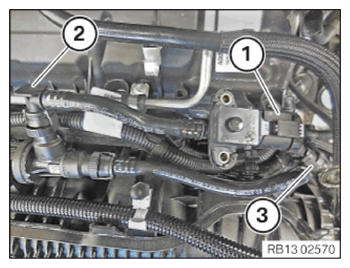

- Unlock plug connection (1) and disconnect.
- Release lock (2) and (3) and guide out and remove the tank ventilation line with the pressure sensor.
Follow-up work
- Refer to INSTALLING ACOUSTIC COVER .
