Installing the trim for the Head-Up Display

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

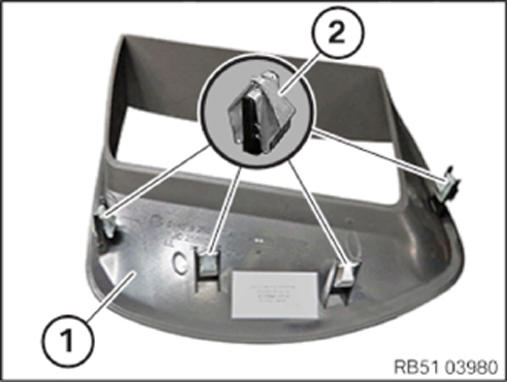

Check clamps (2) on trim (1) for the Head-Up Display for damage and replace them if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

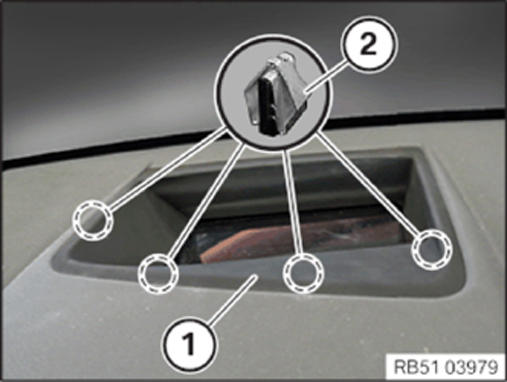

Position trim (1) for the Head-Up Display on the instrument panel trim and clip it into clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
