Installing the front right wheel arch cover
NOTE:
Description is for left component only. Procedure on the right side is identical.

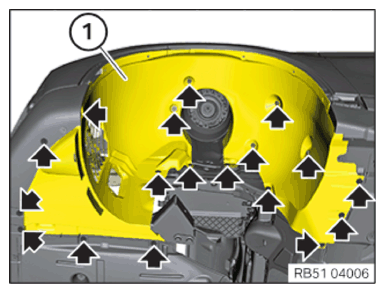

- Guide the wheel arch cover (1) in.
- Tighten all screws and nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch cover to body | ||
|---|---|---|
| Screw | Tightening torque | 2.5 Nm |
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch cover to body | ||
|---|---|---|
| Plastic nut | Tightening torque | 3 Nm |
Installing the front wheel arch trim
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.
NOTE:
Description is for left component only. Procedure on the right side is identical.

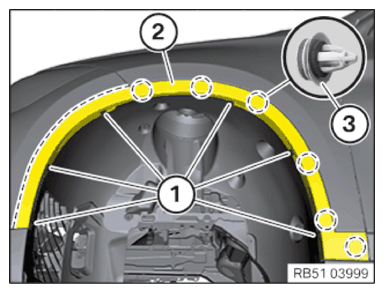

- Check the clips (3) for damage and replace, if necessary.
The clips (3) must not be damaged or missing.
- Feed in wheel arch trim (2) and engage on the clips (3).
- Engage wheel arch trim (2) in the locks on the bumper.
- Mount blind rivets (1) using the special tool 0 496 521 (00 2 230) .
