Install the gutter strip on the windscreen on the left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

• Install the gutter strip on the windscreen

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.  .

• Protect working area.
• Handle tools and components carefully.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

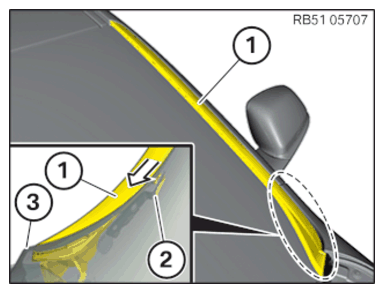

• Carefully feed in the gutter strip (1) at the side panel (3) and simultaneously feed into the guide (2) in direction of arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

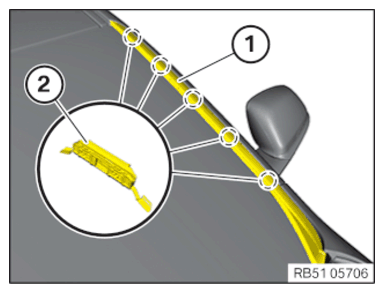

• Clip in the gutter strip (1) at the bottom starting at the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
