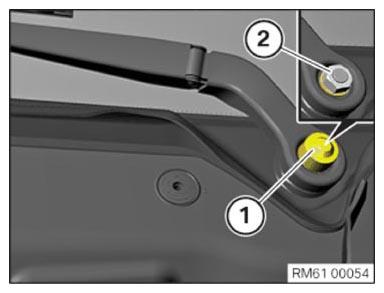

Install left and right wiper arm
Install left and right wiper arm
Join wiper arm and tighten with nut
(2)
.
TIGHTENING TORQUE SPECIFICATIONS
Windshield wiper arm
Combination hexagon nut
tightening torque
35 Nm
Join the protective cap
(1)
.
