Install both trim panels for the water gutter

Installing the trim in the water channel

Check

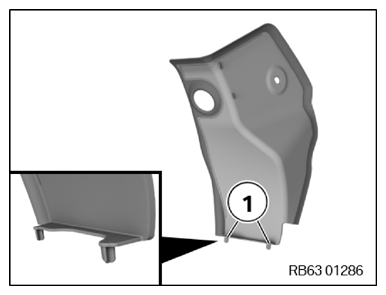

• Check guides (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The guides (1) are damaged.

Measure

• Replace the trim.

  Parts:  trim

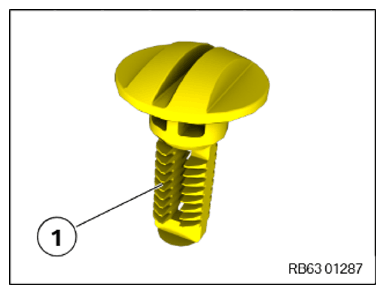

• Check the rotary clip (1) for damage and replace it if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

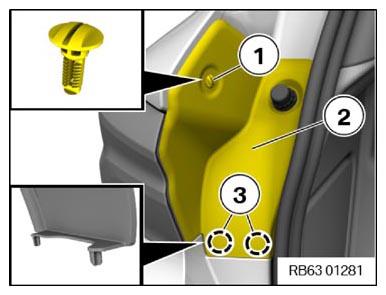

• Insert the trim (2) with the guides (3).
• Fasten the rotary clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.
