If installed: Installing the engine ventilation line (partially removed)

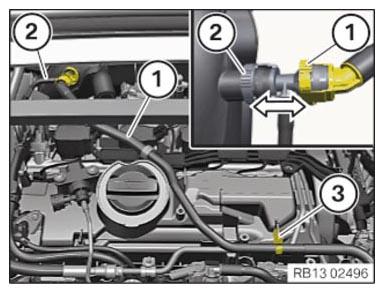

• Guide in the engine ventilation line (1) and secure the clamps (3) to the cylinder head hood.
• Connect the engine ventilation line (1) to the engine ventilation line (2) in the arrow direction and lock it.
• Make sure that the engine ventilation line (1) snaps in audibly.
