Remove tank vent valve
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .

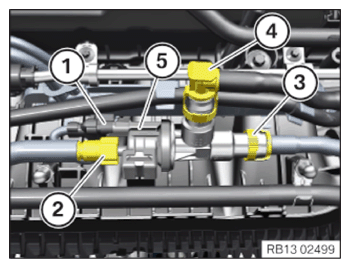

- Unlock connector (1) and pull off.
- Unlock and pull off the tank ventilation line (2).
- Unlock and disconnect the tank ventilation line (3) from the throttle body.
- Unlock and disconnect tank vent line (4) from throttle body.
- Detach the tank vent valve (5) from the holder and remove it.
