Installing the boost pressure sensor on the intake plenum

• Check the sealing ring (1) for damage, replace if necessary.
• Coat sealing ring (1) of boost pressure sensor thinly with lubricant.

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Boost pressure sensor to intake plenum
Torx screw 6x20	Tightening torque	5 Nm
Hexagon bolt 6x20	Tightening torque	8 Nm

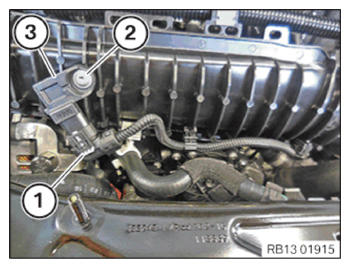

• Guide in and insert charging pressure sensor (3) on the intake air plenum.
• Tighten down screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the connector (1).
• Make sure the connector (1) engages audibly.
