Install coolant temperature sensor

Insert and install the coolant temperature sensor (2).
Tighten the coolant temperature sensor (2).

TIGHTENING TORQUE SPECIFICATIONS

Coolant temperature sensor at cylinder head
Sensor	Tightening torque	18 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1).
Make sure the connector (1) engages audibly.

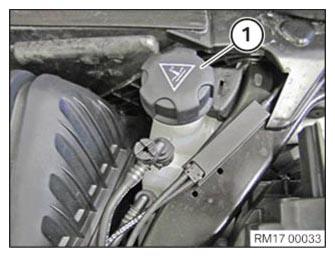

Loosen sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Follow notes for repair work on the cooling system.
For additional information see:
NOTES FOR WORKING ON THE COOLING SYSTEM .

Adjust coolant level to the maximum mark .
Shut sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TANK VENT VALVE .
Refer to INSTALLING INTAKE SILENCER HOUSING .
Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
Refer to CONNECTING THE BATTERY EARTH LEAD .
