Installing the throttle body

• Replace sealing ring (1).

  Parts:  Sealing ring

• Insert and install the sealing ring (1) on the intake plenum (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace sealing ring (1).

  Parts:  Sealing ring

• Insert and install the new sealing ring (1) on the throttle body.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the throttle body (2) in the direction of the arrow at the throttle valve (3) and install.
• Ensure that the locks (1) engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the throttle valve.
• Tighten the screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the engine ventilation line (1).

  The engine ventilation line (1) must engage audibly.

• Check seal (1) for damage and replace seal (1) as needed.

Parts:  Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

• Remove damaged seal.
• Clean the gasket groove (1) with a dry cloth.

  The gasket groove (1) must be clean.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket.

  Parts:  Gasket

• Install the seal dry without lubricant or mounting agent.

• Thread in seal and install.
• Make sure that the seal is installed correctly in the gasket groove (1).
• Make sure that the sealing lip (2) is directed to the inside as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

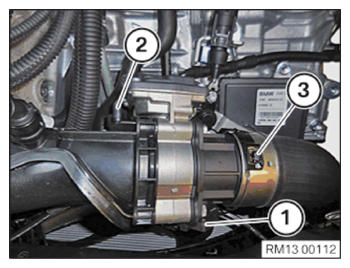

• Detach the locks (1) in the direction of the arrow from the brackets.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the connector (1) on the charging pressure sensor.
• Connect and lock the connector (2) on the throttle valve.
• Make sure you can hear the connectors (1) and (2) engage.
• Insert and install the pressure pipe (3) on the throttle body.
• Make sure the pressure pipe (3) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING INTAKE SILENCER HOUSING .
• Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
