Replacing the throttle body
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

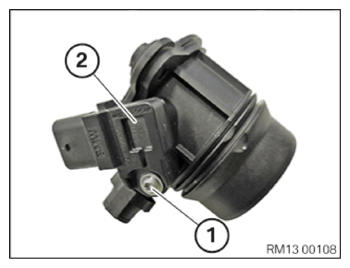

- Loosen screw (1).
- Remove the boost pressure sensor (2).

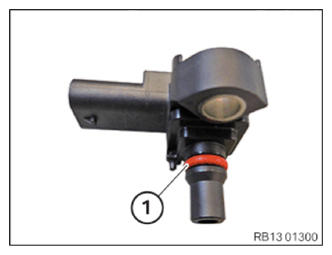

- Check sealing ring (1) for damage, replace boost pressure sensor if necessary.
Parts: Boost pressure sensor
- Prior to installation, apply a thin coat of lubricant to the sealing ring (1) of the charging pressure sensor.
- Insert and install the boost pressure sensor (2).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Boost pressure sensor to throttle body | ||
|---|---|---|
| TS5x20 | tightening torque | 5 Nm |
