Remove front door trim panel
Preliminary work
- Refer to REMOVING COVER ON DOOR HANDLE .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.

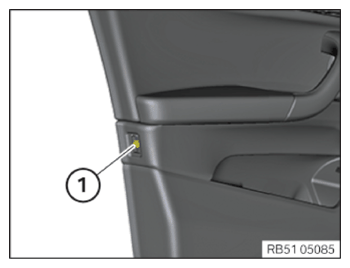

- If fitted: Remove the cover and unscrew the bolt (1).
- Loosen screws (1).

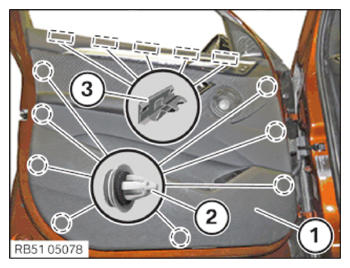

- Unclip the door trim panel (1) from the clips (2) with a suitable plastic wedge.
- Pull the door trim panel (1) from the clamps (3) at the top.
- Detach Bowden cable (1) from door lock (2).
- Disconnect all plug connections and remove door trim panel.
