Install bumper cover, front

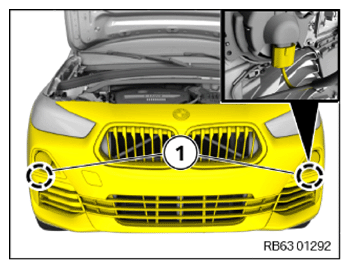

• Connect and lock the connector plug (1) at the front fog lamps
• Set down and position the bumper trim at the front.

  Courtesy of BMW OF NORTH AMERICA, INC.

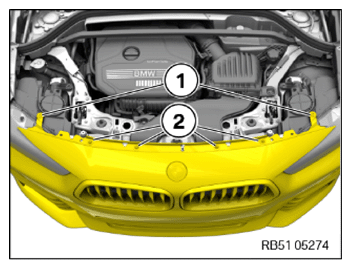

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Bumper panel to headlamp
  Thermoplastic multi-purpose bolt	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Bumper panel to air duct
  Screw M6	Tightening torque	4.6 Nm

  NOTE: Description is for left component only. Procedure on the right side is identical.

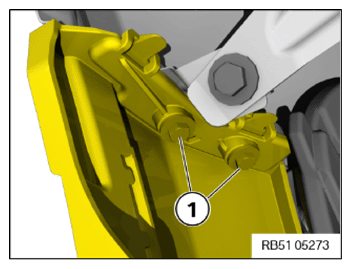

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Front bumper panel to fender
  Screw TS5X35	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

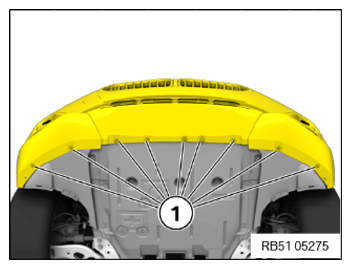

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Front bumper panel to undershield
  Thermoplastic hexagon screw	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING FRONT LEFT AND RIGHT WHEEL ARCH COVER .
• Refer to PARTIALLY INSTALLING THE WHEEL ARCH TRIM ON THE FRONT LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT CENTER HOOD SEAL .
• Refer to INSTALLING HOOD SEAL ON LEFT AND RIGHT SIDES .
