Installing the left hood lock

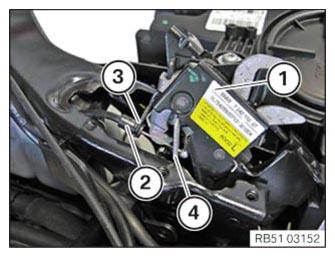

• First hang the Bowden cable (2) in the lock lever (4) then in the counter support (3).
• Connect all connectors and lock.
• Fit the left hood lock (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to INSTALLING INTAKE SILENCER HOUSING .
• Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
