Install the KAFAS camera
NOTE:
TECHNICAL INFORMATION
Heating of the KAFAS camera is integrated in the windshield. If the heating is defective, the windshield must be replaced.
Heating of the KAFAS camera is integrated in the windshield. If the heating is defective, the windshield must be replaced.

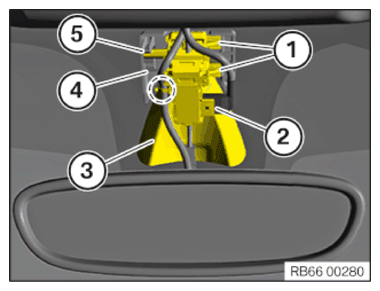

- Correctly feed in the KAFAS camera (3) with the guides (1) on the holder (4).
- Engage the latch mechanism (5).
- Connect connector (2),
- Attach cable in the marked area,
Follow-up work
- Refer to INSTALLING THE COVER ON THE INSIDE MIRROR .
