31 60 003 Removing and installing/replacing left output shaft

Necessary preliminary work:

• Remove FRONT WHEEL .

Removal:

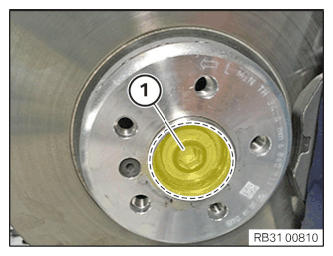

If installed: Remove protective cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release collar bolt (1), press brake pedal to floor to do so.

Courtesy of BMW OF NORTH AMERICA, INC.

Turn steering wheel to left.

Pull output shaft (1) out towards front.

Courtesy of BMW OF NORTH AMERICA, INC.

Use a mounting lever (2) to lever the output shaft (1) out of the transmission.

Remove output shaft (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace circlip.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert output shaft (1) into gearbox.

Turn steering wheel to left.

Insert output shaft (1) from the front into the pivot bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

• Pay attention to installation position of compression spring (2).
• Keep collar bolt and spur gearing of wheel bearing/output shaft clean and free of grease.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace collar bolt with compression spring.

Parts:  Collar bolt with compression spring

Tighten the collar bolt (1) with the compression spring hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

• Spur gearing of wheel bearing (1) and output shaft (2) must be installed form-fit (tooth in tooth position)!

Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.

If positive locking is ensured, tighten the collar bolt with tightening torque (for this, press brake pedal to the floor).

Tightening torque 31 60 2AZ

Courtesy of BMW OF NORTH AMERICA, INC.

Thinly grease the wheel hub in area (1).

Do not install the protective cap.

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, attach protective cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Check transmission for leaks.
• Install FRONT WHEEL .
