00 11 500 Checking/topping up oil level in automatic gearbox (AISIN F22AW)
Failure to comply with this requirement will result in serious damage to the automatic transmission!
Necessary preliminary tasks:
- Remove the FRONT UNDERBODY PROTECTION .
- Remove the INTAKE SILENCER HOUSING .
Removal:
Move selector lever to "P" position.
The vehicle must be horizontal and secured against rolling off.
Connect BMW diagnosis system.

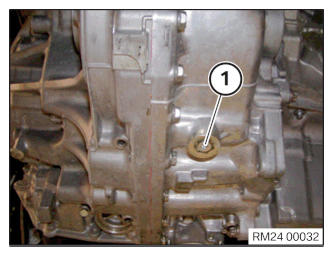

Release oil filler plug (1) with Torx T55.
Draining transmission oil:
Release overflow plug (1) with Torx T40.
Undo oil drain plug (2) using 17 mm hexagon socket.
Tightening torque, refer to: 24 11 1AZ .
Top up transmission oil. (Transmission oil has been drained)
Release overflow plug (1).
Tightening torque, refer to: 24 11 2AZ .
Top up automatic transmission fluid at oil filler plug until oil emerges at overflow plug.
Start engine and run at idle speed.
Check whether automatic transmission fluid emerges at overflow plug.
If not, continue to add ATF.
Actuate footbrake and at idle shift through all gears ("P" to "D") twice for more than 2 seconds.
Then set switch to "P".
Check again whether automatic transmission fluid emerges at overflow plug.
Check the temperature of the automatic transmission fluid with the BMW Diagnosis System.
Increase temperature of automatic transmission fluid to 35... 45°C.
Top up automatic transmission fluid until it flows over.
Screw in oil filler plug and overflow plug.
Tightening torque, refer to: 24 11 2/3AZ .
Installation note:
Parts: Replace sealing rings.
Check oil level (oil temperature must be between 35 and 45°C):
Open the oil filler plug.
Slacken overflow plug (1).
Tightening torque, refer to: 24 11 2/3AZ .
Start engine and run at idle speed.
Unscrew and remove overflow plug.
Check whether automatic transmission fluid emerges at overflow plug (1).
If not, pour in automatic transmission fluid up to oil filler plug.
Top up automatic transmission fluid until it overflows at overflow plug.
Actuate footbrake and at idle shift through all gears "P" to "D" twice for more than 2 seconds.
Move switch to "P" position.
Check oil level again.
Seal screws when the oil emerges slightly from overflow plug.
Tightening torque, refer to:24 11 2/3AZ .
Installation note:
Parts: Replace sealing rings.
Required follow-up work:
- Install the FRONT UNDERBODY PROTECTION
- Install the INTAKE SILENCER HOUSING
Connect BMW diagnosis system:
- Delete fault memory
