51 71... Removing and installing/replacing right (rear) suspension cross-brace

WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Driving without the strut brace is not permitted! (risk of damage to the body).

Necessary preliminary tasks:

Remove COWL PANEL COVER (front section)

Removal:

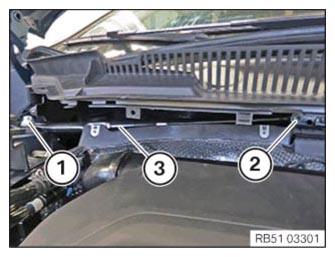

Release screw (1).

Slacken nut (2).

Remove suspension cross-brace (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install strut brace (3).

Tighten nut (2).

Tightening torque 51 61 2AZ .

Tighten screw (1).

Tightening torque 51 61 3AZ .

NOTE: Make sure suspension cross-brace (3) is in correct installation position.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install COWL PANEL COVER (front section)
